The Outputs section concerns general testing of the outputs, and some information on typical output uses.


The Outputs Settings dialogue (under the System node in the entity tree) allows you to assign a physical output channel to an array of functions. There are several physical output types, including Injector, Coil, Low Side H-Bridge and so on channel types.

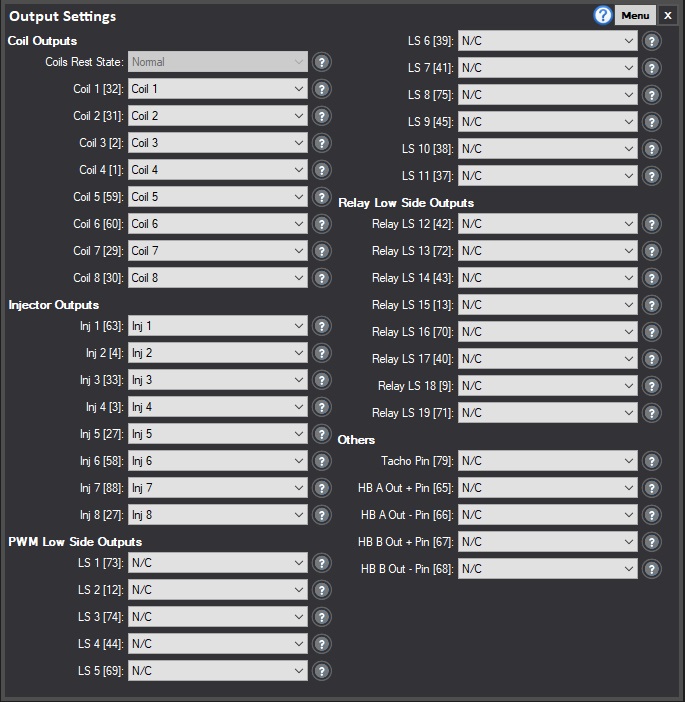

Below is the Output Settings on the ME442 Wire-In. Settings and channels will differ depending on ECU type. For example the ME221 has only Coil A and Coil B channels under coils as it only has two coil drivers built in.
