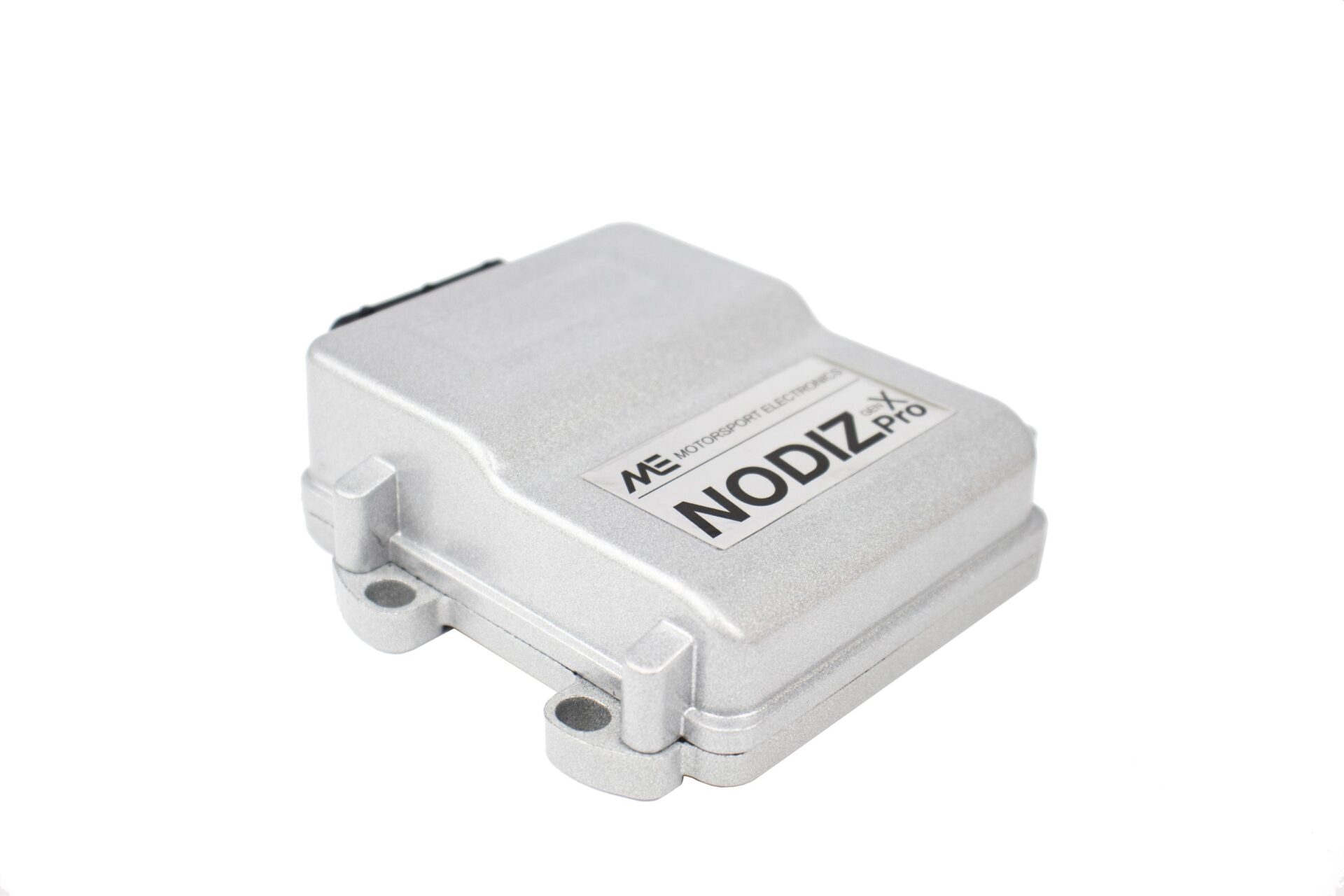

Nodiz Gen-X with Unterminated Harness

£330.00 (£275.00 ex VAT)

Nodiz Gen-X ignition-only ECU with a 3 m unterminated, colour-coded harness for a custom installation. It controls ignition, not fuel injection.

In stock (can be backordered)

Recommended accesories

IMG_5182

Nodiz Gen-X TPS/MAP Wiring Harness

Unlock 3D ignition timing for your Nodiz-controlled engine for increased throttle response and tuning capabilities (Wiring harness only)

IMG_5175

FTDI Serial to USB adapter

The FTDI serial to USB adapter is the perfect tool for seamless communication between our wire-in ECUs and your computer. With its reliable and high-speed data transfer, this adapter ensures efficient and hassle-free connectivity.

10210

RS232 Serial extension cable

Make tuning more convenient with this 1.5M RS232 extension cable.

The Nodiz Gen-X is an ignition-only ECU for four-cylinder, distributorless applications, including carburettor-based engines. It provides programmable ignition timing without controlling fuel injection.

This version includes an unterminated, colour-coded 3 m harness so you can route and terminate it to suit your vehicle.

The built-in diagnostic LED helps identify basic crank-sensor or coil issues. MEITE software provides access to ignition mapping and configuration. Three spare outputs can be assigned to functions such as a shift light, fan relay or fuel-pump relay. Add a throttle-position or MAP sensor for load-based 3D ignition mapping.

Additional information

Weight 1 kg
Dimensions 40 × 25 × 12 cm

Key Features

  • 16×16 3D Ignition Table
  • Direct Coil Drive, Wasted Spark Ignition
  • 36-1 or 60-2 trigger patterns supported
  • 2D mode or Throttle/MAP for load
  • Direct Serial Connectivity
  • Hard Cut/Soft Cut Limiters
  • Auxiliary & Shift Light Output
  • 12V Adjustable Tachometer Output
  • Fully enclosed and Waterproof
  • Basemaps Preloaded
  • Launch Control
  • Status Indication LED

What's in the box?

  • Nodiz Gen-X ECU
  • Terminated harness
  • Spare terminals
