Nodiz/ME100 Gen-X Unterminated Harness
£75.00 (£62.50 ex VAT)
Need an ignition Only ECU but we don’t have a ready made harness for your engine? Look no further! 3m of colour-coded wire ready for you to trim, sleeve and terminate to run any engine.
In stock

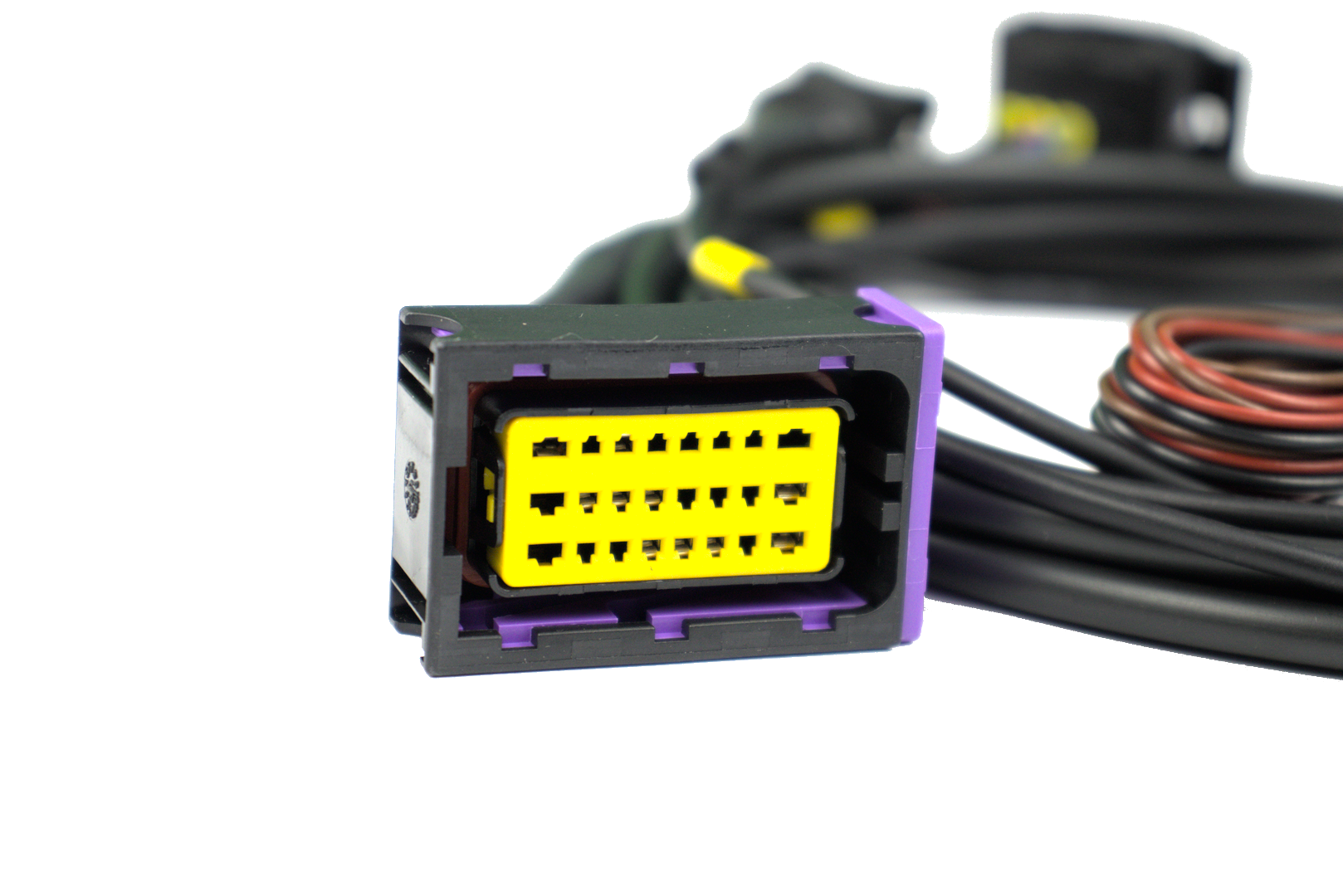

This is the Unterminated Harness for our Nodiz/ME100 Ignition only ECU– 3m of colour-coded wire so you can fully customise your harness with any connectors you desire.
The inbuilt diagnostics LED lets you know if you have a crank sensor or coil pack issue – no need for a laptop for the basics making diagnostics easy – but plug in a laptop and download the free MEITE tuning software for a powerful engine management experience with full tuning options.
The unit features three spare outputs for shift lights, cooling fans, fuel pumps etc, all software configurable.
Add a throttle sensor or MAP sensor to allow full 3D tuning based on load as well as engine speed.
Additional information
| Weight | 1 kg |
|---|---|
| Dimensions | 40 × 25 × 12 cm |
Key Features
- 16×16 3D Ignition Table
- Direct Coil Drive, Wasted Spark Ignition
- 36-1 or 60-2 trigger patterns supported
- 2D mode or Throttle/MAP for load
- Direct Serial Connectivity
- Hard Cut/Soft Cut Limiters
- Auxiliary & Shift Light Output
- 12V Adjustable Tachometer Output
- Fully enclosed and Waterproof
- Basemaps Preloaded
- Launch Control
- Status Indication LED
What's in the box?
- Nodiz Gen-X ECU
- Terminated harness
- Spare terminals
Manuals
Click below to open the manuals page in a new tab
