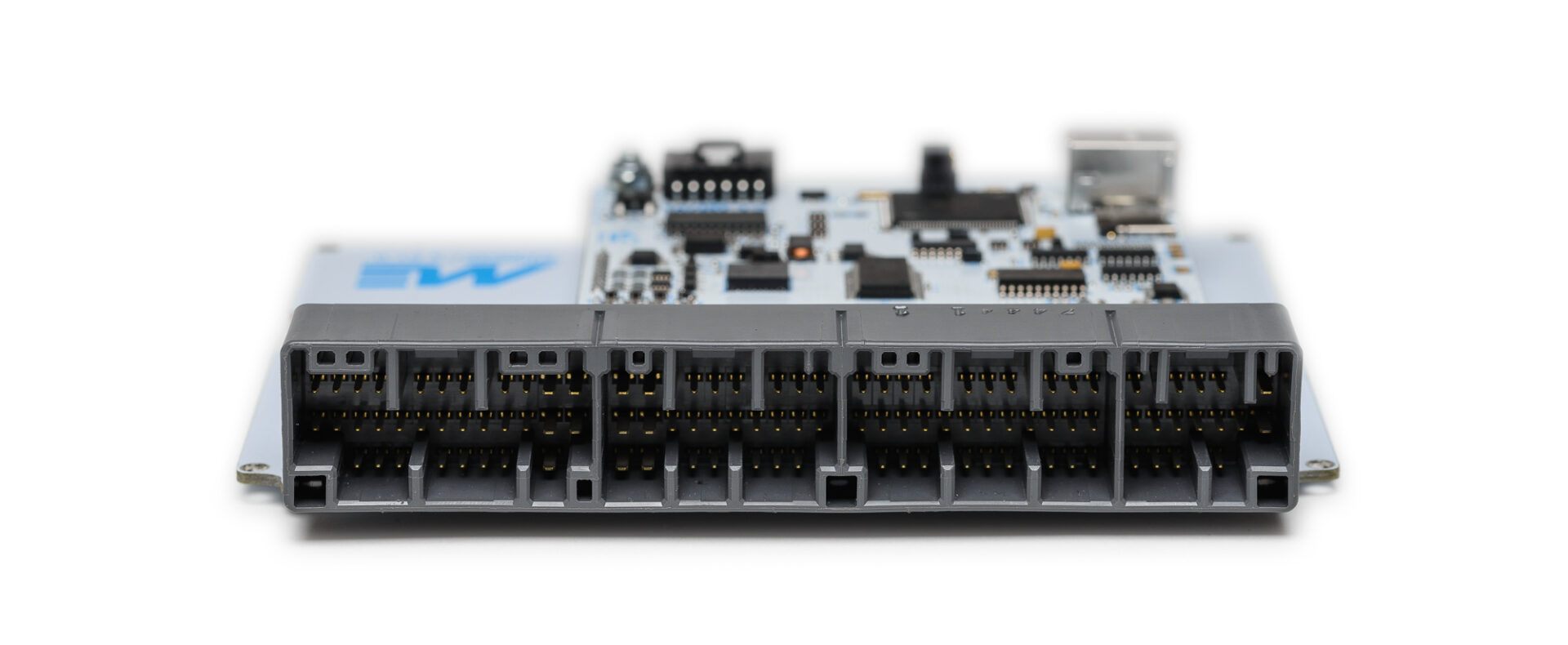

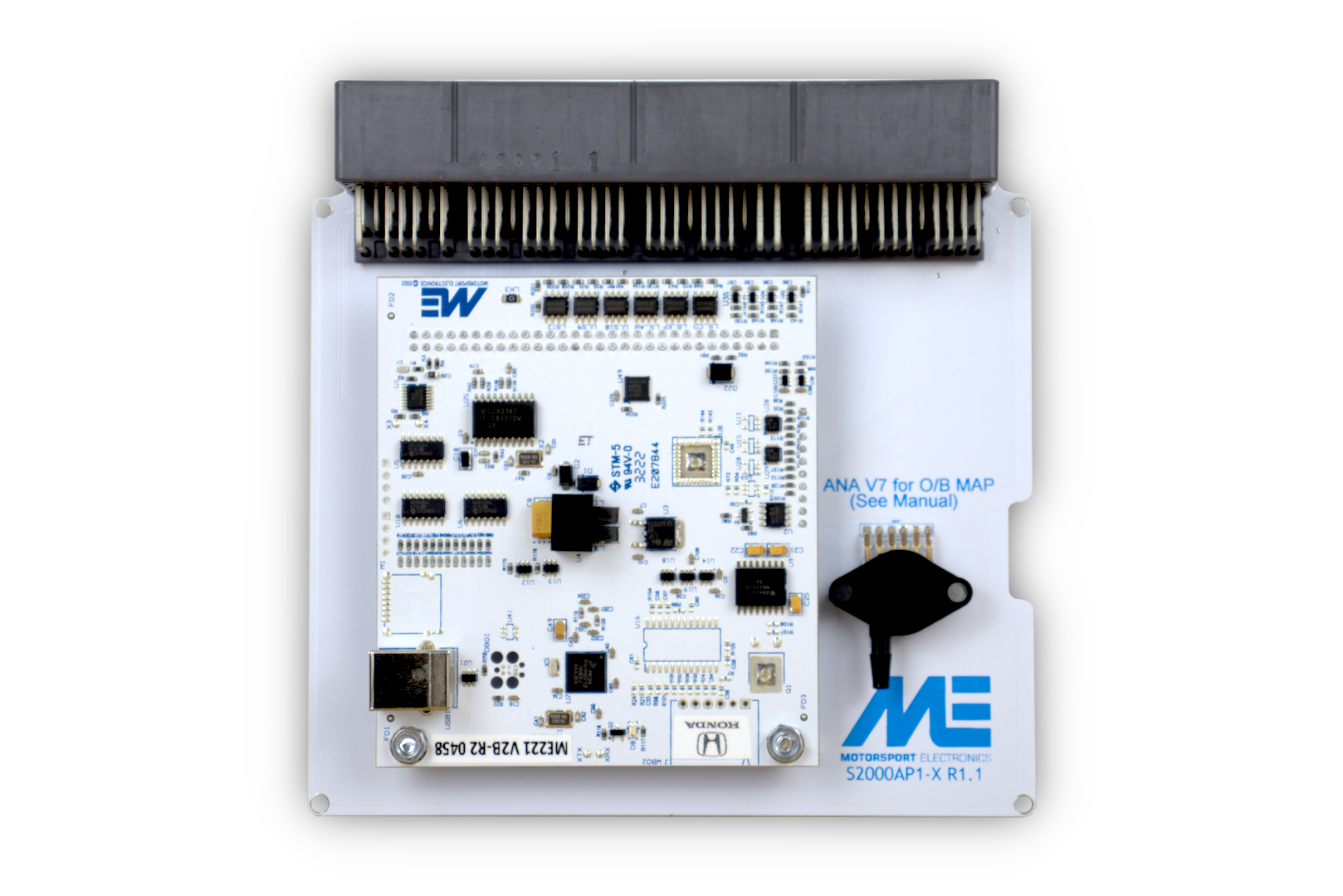

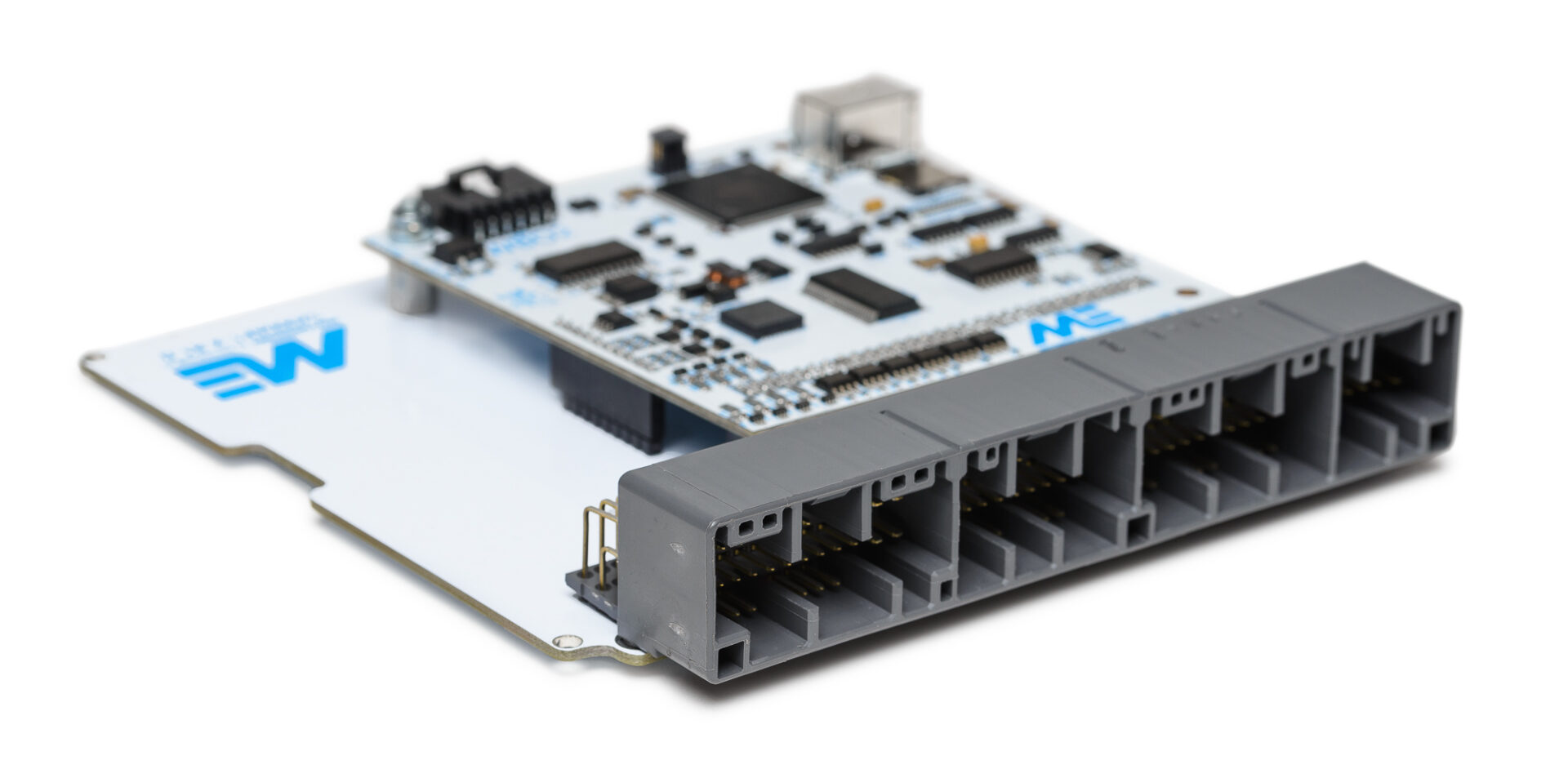

ME221 Plug-in for S2000 AP1
£695.00 (£579.17 ex VAT)
ME221 plug-in engine-management ECU for the S2000 AP1. Uses the vehicle’s existing ECU connection for a tidy installation. Check your original ECU and vehicle specification against the fitment guide before ordering.
Available on backorder
You may also like…
ME221 plug-in engine-management ECU for the S2000 AP1.
The ECU is designed to use the factory ECU connector and casing. The existing wiring and sensors are retained where supported; installation and a suitable calibration are still required. The listing states support for the original dash cluster and VTEC control.
Check your original ECU and vehicle specification against the fitment guide before ordering.
- Uses the ME221 ECU Core (NXP Automotive Processing Power)
- Supports factory sensors.
- Plug-in: Supports both switched TPS and linear TPS conversions.
- 16×16 Fuel and Ignition Tables (with dual table switching)
- VE based fuelling algorithm.
- Run any type of high impedance injectors.
- DSP Knock Control
- In-built 60psi MAP sensor
- Closed Loop Boost, Lambda and Idle Control
- Launch Control
- Fully Sequential on 1.8 version
- Firmware updates available
- Uses the powerful MEITE tuning studio.
- An open approach to firmware/software features.
- Supplied with rolling road certified and developed basemaps for either turbo or NA setups.
Additional information
| Weight | 1 kg |
|---|---|
| Dimensions | 40 × 25 × 12 cm |
Key Features
- VE Based fuelling algorithm (MAF-less)
- Supports all OEM Sensors/Dash/AC etc
- Boost Control
- OEM Idle Control
- High Accuracy
- COP Support
- USB Connectivity
- Switchable Maps
- VVT & DSP Knock Control
- Configurable IO with Auxillary Inputs/Outputs
- Advanced Motorsport Features
- Powerful Tuning Suite
Whats in the box
- ME221 ECU
- Vacuum hose
- Sticker
- USB Cable
Video install Guide
Click the image below for a complete install guide
Manuals
Click below to open the manuals page in a new tab
