Traditional fuse boxes, relays, and point-to-point wiring have served cars well for decades, but modern motorsport and custom builds often need something smarter, cleaner, and easier to manage.

That is where the APEX PDM comes in.

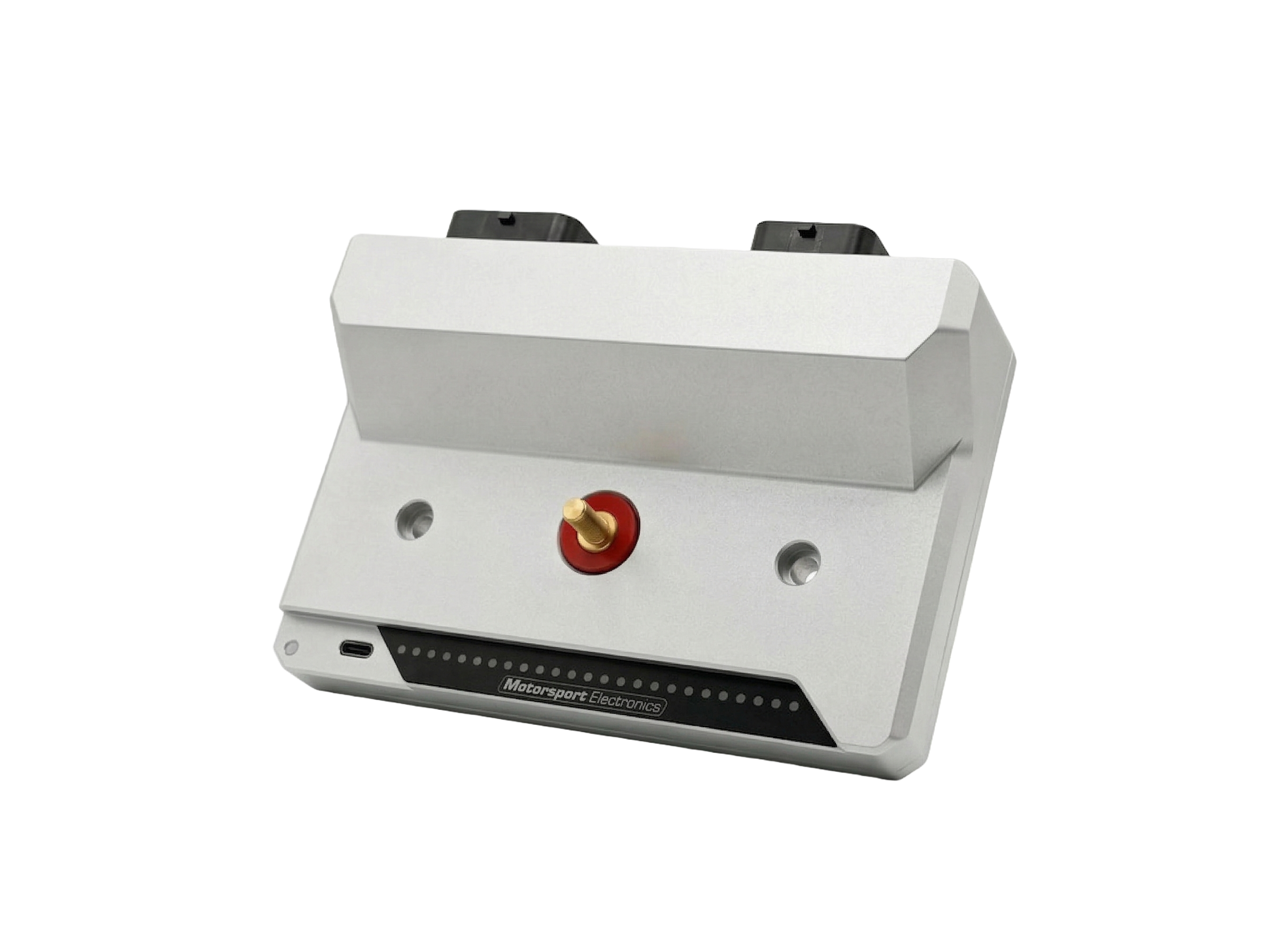

The APEX PDM is designed to replace a traditional fuse and relay box with a modern power distribution system. Instead of relying on individual fuses and relays for every circuit, the PDM uses solid-state outputs, software configuration, current monitoring, and built-in protection to control the vehicle’s electrical system from one central unit.

In simple terms, it is a smarter way to wire a modern performance car.

What Does a PDM Do?

A PDM, or Power Distribution Module, distributes power from the battery to the electrical systems around the vehicle.

This can include:

• Fuel pumps
• Fans
• Lights
• Ignition systems
• ECU power
• Lambda controllers
• Wipers
• Indicators
• Dash systems
• Auxiliary outputs

In a traditional setup, many of these circuits would need fuses, relays, relay bases, switches, and extra wiring. As the car becomes more complex, that setup becomes bulky, harder to diagnose, and harder to change later.

A PDM simplifies all of that.

Why Choose a PDM Over a Fuse Box?

A fuse box is simple protection. If there is a fault, the fuse blows.

A PDM offers protection, control, diagnostics, and flexibility.

With the APEX PDM, outputs can be electronically protected and configured in software. Instead of replacing blown fuses, the system can monitor current draw, shut down a circuit when needed, and help you understand what has happened.

That makes fault finding much easier. You can see output states, current draw, input status, logic conditions, and fault information through the software rather than chasing wiring faults with a multimeter alone.

It also reduces wiring complexity. Removing multiple relays, fuse holders, and relay wiring makes the loom cleaner, lighter, and easier to work with.

Smarter Control

One of the biggest advantages of a PDM is flexibility.

A traditional relay usually performs one fixed job. A PDM output can be controlled by logic.

For example, outputs can be triggered by:

• Switches
• Analogue inputs
• CAN messages
• Timers
• ECU data
• Multiple conditions at once

This allows control strategies such as fan control based on coolant temperature, fuel pump prime timers, ignition power sequencing, wiper control, safety shutdowns, CAN keypad integration, and more.

For race cars, track cars, kit cars, restomods, and engine swaps, that flexibility can make the whole electrical system more professional and easier to manage.

Available With a Harness

The APEX PDM can also be supplied with a harness, making installation more approachable.

This is ideal for customers who want the benefits of a modern PDM system but do not want to start completely from scratch with loose connectors and terminals.

A harness option can save time, reduce wiring errors, and give the installer a solid starting point while still allowing flexibility for the final vehicle layout.

A Fresh Approach to PDM Software

Powerful hardware is only useful if the software is easy to understand.

Many PDM systems can feel intimidating, especially when setup is buried in tables, menus, or complicated logic structures. The APEX PDM software takes a more visual approach.

Instead of forcing users to think like software engineers, the software is designed to help them build and understand the electrical system visually. Inputs, outputs, conditions, and behaviours can be linked in a more intuitive way, making it easier to see what controls each circuit and why.

For experienced installers, this speeds up configuration.

For first-time PDM users, it makes the process far less intimidating.

The aim is simple: powerful control, without making the setup feel complicated for the sake of it.

Who Is the APEX PDM For?

The APEX PDM is ideal for vehicles where the electrical system is being modified, simplified, or built from scratch.

That includes:

• Race cars
• Track cars
• Kit cars
• Restomods
• Rally cars
• Engine swaps
• Custom road cars

If you are installing an aftermarket ECU, dash, CAN keypad, extra fans, fuel pumps, lighting, or other accessories, a traditional fuse box can quickly become limiting. A PDM gives you a cleaner and smarter foundation.

Final Thoughts

The APEX PDM is more than a fuse box replacement.

It protects, controls, monitors, and simplifies the vehicle’s electrical system. It reduces reliance on physical fuses and relays, improves diagnostics, supports advanced logic control, and makes modern wiring far easier to manage.

With harness options and a brand-new visual software approach, the APEX PDM has been developed to make professional power distribution more accessible to both experienced installers and first-time PDM users.

Cleaner wiring. Smarter control. Better diagnostics.

That is what the APEX PDM is built for.
